NANO hotSPOT(CNC Case ) for MMDVM

Mini and Portable, L/W/H 4.7x4.5x3.8mm, inner slim fan and heatSink, keep the temperature cool.

$ 150.00 150.0 USD $ 150.00

$ 150.00

    This combination does not exist.

    ​Shipping: 2-3 Business Days


    Support MMDVM mode: DMR/YSF/P25/NXDN/DSTAR/POCSAG
    Frequency range: 420MHz-475MHz,842MHz-950MHz
    PCB and 3D Case design for NanoPi NEO, with Gold Plated PCB which is 1.6mm thick, different color customize
    Inner Ceramic antenna,center frequency 433MHz.
    Innovative shell design made more suitable for user experience,and improve the service life of the equipment.

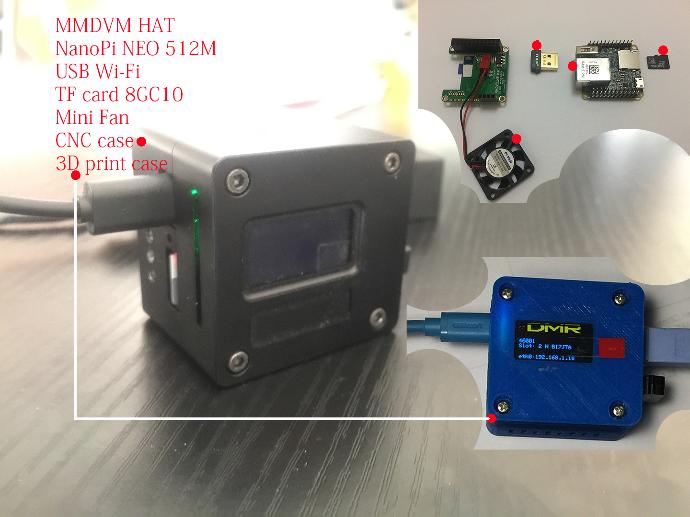

    Including && components
    1x PCB with 433MHz Ceramic antenna,
    1x 3D Case with OLED hole,inner slim fan,slim heatSink
    1x Nanopi NEO 512M,
    1x High quality USB WiFi ,
    1x High quality MicroUSB cable
    1x 16G/8G C10 SanDisk/TOSHIBA TF Card
    1x 0.96-inch OLED

    Options:
    OTG cable with chargeable ,use for link and power Nextion display.
    Nextion display.

    More photos: https://www.bi7jta.org/cart/index.php?route=product/product&path=59_64&product_id=54

    From 2021.7 shipping to EU (not including Germany) if use my AliExpress link will deliver fast , pre-TAX on platform.https://www.aliexpress.com/item/4000042610922.html

    Power supply recommend: 5V2A (Actual test 5V 0.3A ~ 0.6A)
    MCU: STM32F103C8T6
    Transceiver IC: ADF7021,Programmable output power: -16dBm to +13dBm
    TCXO: 14.7456MHz,±2.5 ppm
    PCB: 40mmx40mmx1.6mm
    Host: NanoPi NEO 512M RAM,v1.31,A3 Architecture
    USB WiFi: EP-N8508GS
    OLED: I2C 128*64px, blue color or yellow blue double color(random)
    SDCard: 16Gb, Write speed >10MB/s
    Charging cable: Micro USB can transfer data, support 5V2A

    https://www.st.com/en/microcontrollers/stm32f103c8.html
    http://www.analog.com/media/en/technical-documentation/data-sheets/ADF7021.pdf
    http://wiki.friendlyarm.com/wiki/index.php/NanoPi_NEO

    Warning:
    Be sure to use a qualified power supply 5V2A, non-conforming power will lead to bit error rate(BER) instability, Overvoltage will burn this NanoPi and HAT！
